The production capacity of the biomass pellet processing line can be customized according to customer needs. We consider the wood pellet production line an environmentally friendly project because it recycles a large amount of biomass waste, conserving resources and protecting the environment. The finished biomass pellets have a high density and calorific value and can be used directly as fuel.
1. Raw Material Storage System
Mainly used to store materials to prevent them from becoming damp and deteriorating, or from clumping and clogging pipelines. It also regulates the moisture content of materials to produce qualified products. It also allows for screening and grading of materials according to different product requirements.
2. Pulverization Unit
Solid granular raw materials are processed through mills and other mechanical equipment into powder products that meet particle size requirements for use in subsequent processes.
3. Drying Unit
This unit removes moisture and reduces the moisture content, thereby reducing heat consumption and smoke emissions. It also improves product quality and production efficiency, and also protects the environment.
4.There will definitely be a small amount of unqualified products. The screening equipment is to screen out qualified particles and remove unqualified particles.
5.Bucket elevator conveyor
In the pellet production line, the bucket elevator is used to transport materials vertically.
| Model |
Power |
Mold Hole |
Capacity for industrial solid |
Capacity for biomass |
Pellet size(mm) |
| MKYK-36 |
45kw |
36 |
0.5-1.0 |
1.0-1.5 |
32*32*50-100 |
| MKYK-48 |
75kw |
48 |
1.0-1.5 |
1.5-2.5 |
32*32*50-100 |
| MKYK-72 |
110kw |
72 |
2.0-2.5 |
2.5-3.5 |
32*32*50-100 |
| MKYK-90 |
132kw |
90 |
2.0-2.5 |
3.5-5.0 |
32*32*50-100 |
| MKYK-120 |
200kw |
120 |
3.0-4.0 |
4.0-6.0 |
32*32*50-100 |
| MKYK-150 |
250kw |
150 |
4.0-6.0 |
6.0-10.0 |
32*32*50-100 |
In our daily lives, a large amount of biomass waste can be used to make wood pellets. Common raw materials for wood pellets are as follows:
-Crop residues. This includes cotton stalks, wheat straw, rice straw, corn stalks, corn cobs, and other cereal straws.
-Sawdust. Wood chips are excellent for pelleting. Sawdust-based biomass pellets produce stable yields, smooth pellets, and high hardness.
-Small wood shavings. Due to their large size, wood pellets are difficult to fit into wood pellet machines and therefore require crushing in a sawdust grinder before use.
-Sanding powder used in wood and furniture factories. Sanding powder is lightweight and prone to clogging. It is recommended to mix wood chips and pellets together, with a ratio of approximately 50% each.
-Wood board and wood chip offcuts. These raw materials need to be crushed before use.
-Fiber materials. The fiber length of this raw material should be controlled, generally not exceeding 5mm.
FAQ:
Can rice husks be used to make pellets?
Yes, of course. Rice husks can be used to make pellet fuel. However, it's important to ensure the husks maintain a certain moisture content, around 10%.
What are the uses of wood pellets?
Wood pellets are typically used directly as fuel. These fuel pellets are often used to heat factory boilers and homes. Alternatively, wood pellets can be carbonized in a carbonizer to make charcoal pellets.
For more information on process design, equipment layout, plant construction plan, single machine equipment quotation, turnkey quotation, etc., please feel free to contact us.
Finished product display

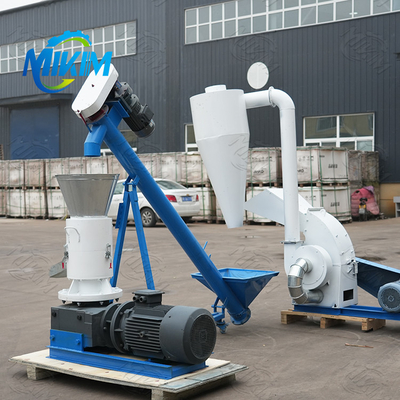

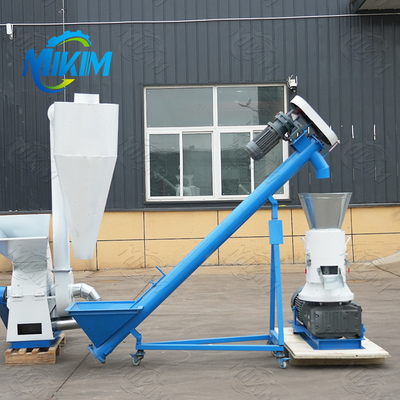

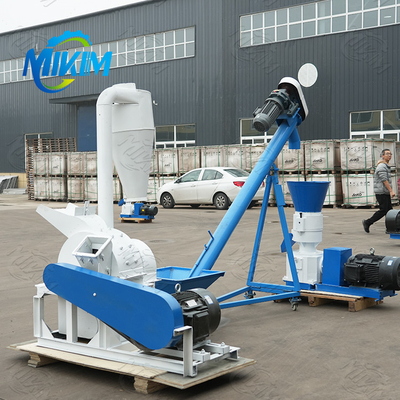

Equipment Photos
